new generation standalone digital scratch instrument

- Release on April-May 2025 -



WOW MAchine Size: 18x18x2.5 cm, Weight: 800g(0.8kg)

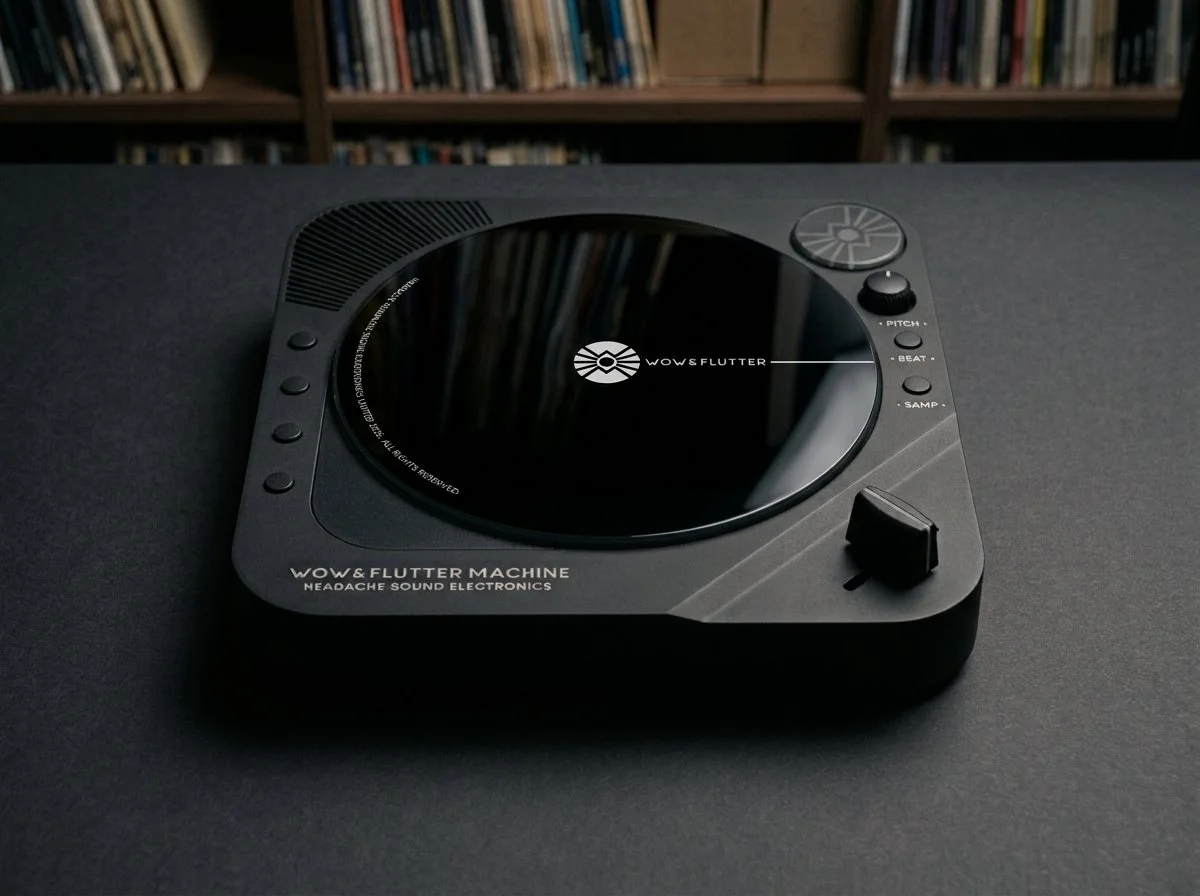

WOW & FLUTTER MACHINE (WOW MACHINE)

WOW & FLUTTER MACHINE aka WOW Machine by HeadacheSound.

WOW & FLUTTER MACHINE IS A STANDALONE DIGITAL SCRATCH INSTRUMENT. IT GIVES THE ANALOG FEEL OF SCRATCHING ON VINYL RECORDS, WHILE PROVIDE FULL DIGITAL CONVENIENCE. WITHOUT THE STYLUS AND THE RECORD, THERE ARE LIMITLESS CREATIVITY, INSPIRATION AND FREEDOM.

WOW & FLUTTER MACHINE IS “MORE PORTABLE THAN ALL PORTABLES”, A MUST HAVE TOOL FOR MODERN DJ, TO CREATE AND TO PRACTISE ON THE GO.

WOW MACHINE KEY FEATURES

  • 5.5” ULTRA HIGH SENSITIVITY MOTORISED JOG WHEEL

  • +/- 50% ULTRA PITCH CONTROL

  • BUILT-IN AUDIO REVERB AND DELAY

  • STANDALONE AUDIO PLAYER, AUDIO FILES STORED IN INTERNAL MEMORY (8GB, EXPENDABLE TO 32GB), NO EXTRA HARDWARE IS REQUIRED.

  • DIRECT LOSSLESS QUALITY AUDIO RECORDING

  • CONFIGURATION FILE THAT PERSONALIZE VARIOUS ASPECTS

  • HIGH-END SMOOTH DIGITAL CONTACTLESS FADER

  • 5 WATTS INTERNAL SPEAKER

  • INTERNAL 18650 BATTERY CHARGER

  • POWERED BY BATTERY AND USB POWER BANK

Headache Sound reserves the right of final decision.

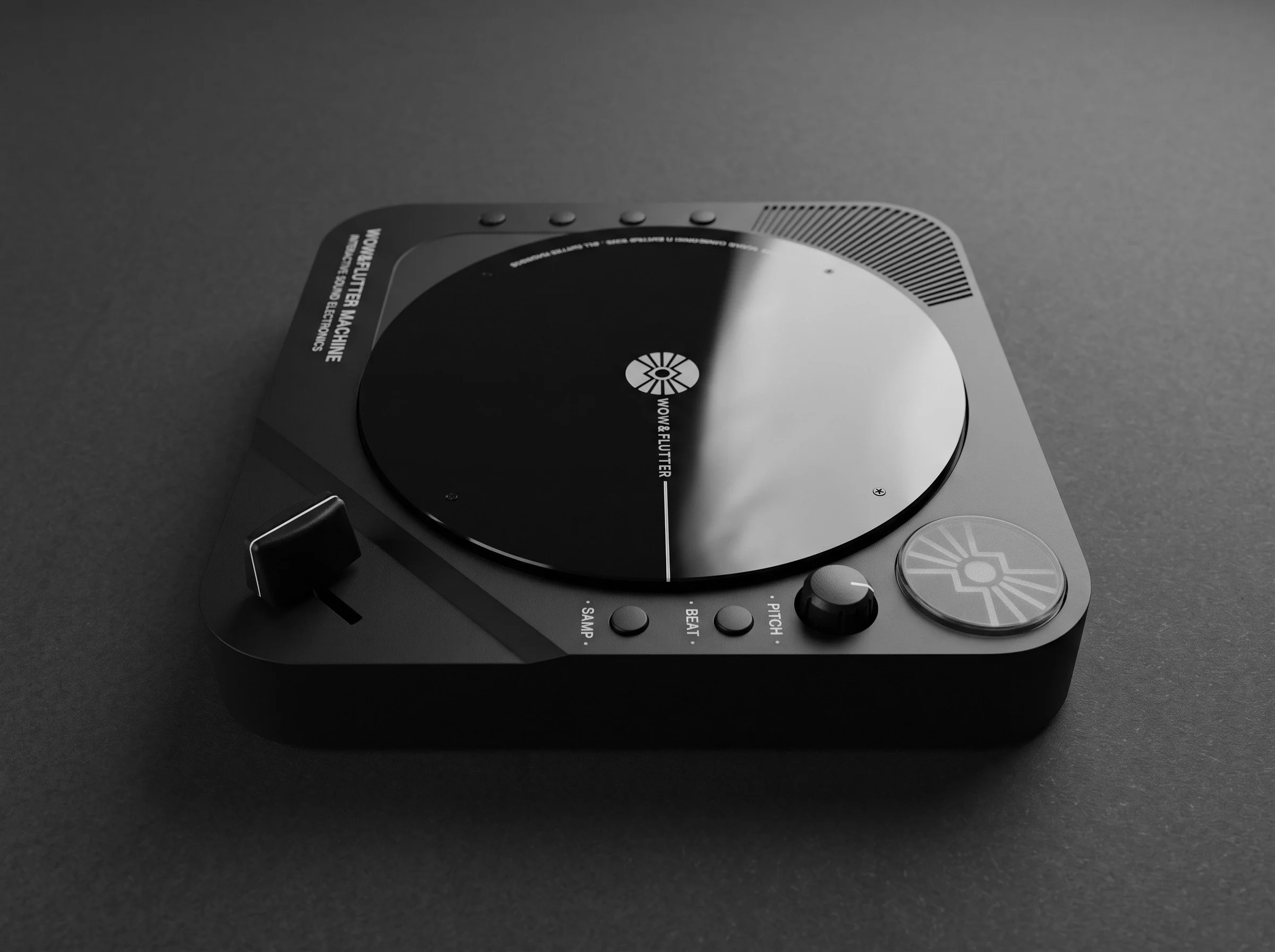

WOW MACHINE BUTTON FUNCTIONALITY

MULTI FUNCTION START BUTTON:

  • PRESS ONCE TO START OR STOP THE JOG WHEEL (LIGHTS UP BLUE).

  • PRESS TWICE TO TURN THE AUDIO EFFECTS ON OR OFF (LIGHTS UP PURPLE).

  • PRESS AND HOLD TO RECORD while effect off (LIGHTS UP YELLOW).

  • PRESS AND HOLD TO RECORD while effect on (LIGHTS UP WHITE).

Pitch Knob:

  • Adjusts the pitch of the scratch sample to +/-50%.

  • To adjust the pitch of the beat, press and hold the "BEAT" button while turning the pitch knob.

Beat Button:

  • Press once to skip to the next beat.

  • Press and hold to return to the previous beat.

Sample Button:

  • Press once to skip to the next sample.

  • Press and hold to return to the previous sample.

Fader:

  • Controls the cutting of the sample or beat. You can customize its behavior in the settings.txt file, including single or double-sided cutting, and whether it cuts the sample or the beat.

Internal Speaker:

  • Automatically turns off when headphones are plugged in.



Headache Sound reserves the right of final decision.

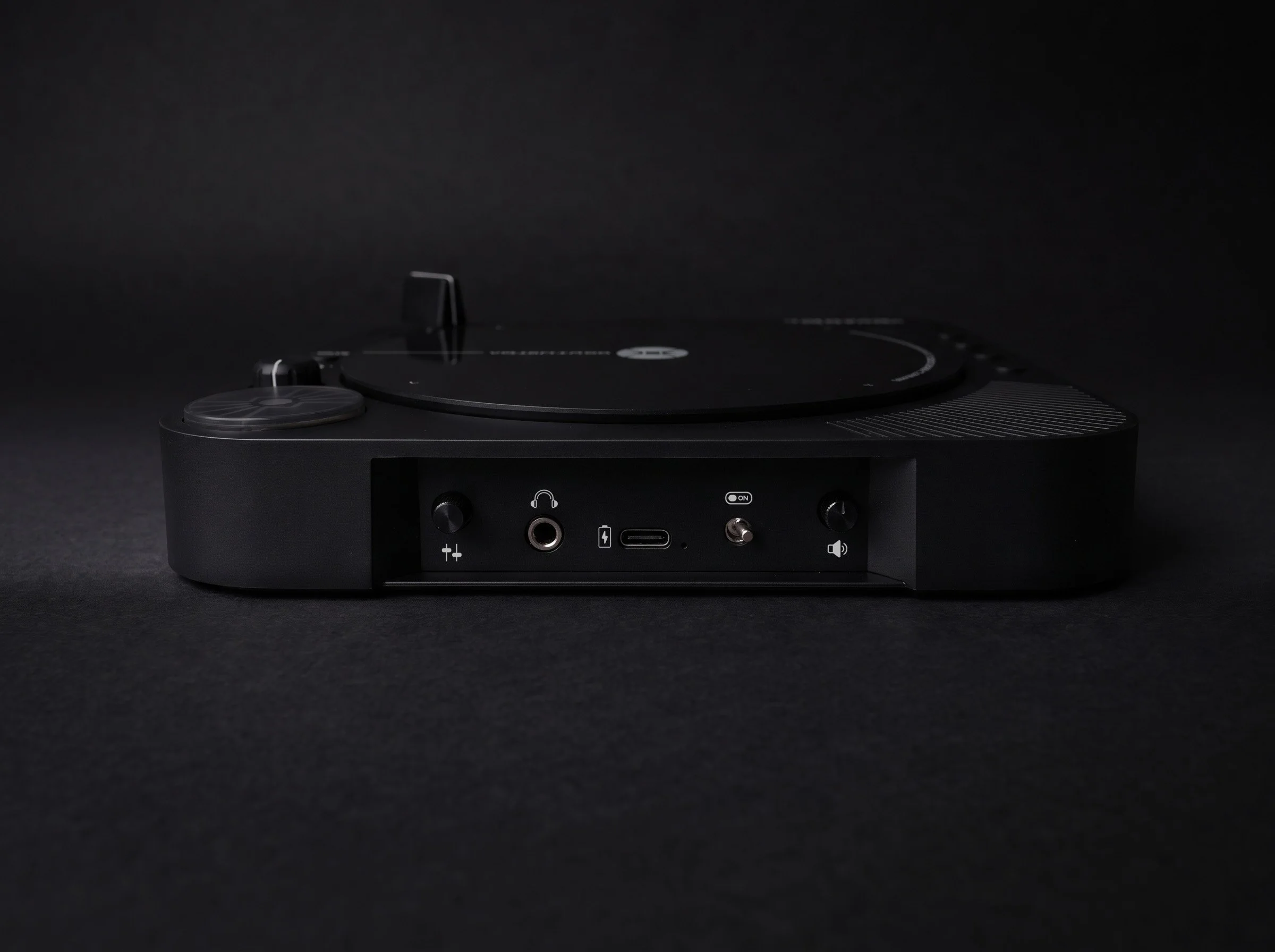

Back Panel buttons function

Volume Knob:

  • Adjusts the volume of both the internal speaker and the headphones.

Headphones Jack/Line Out:

  • Connect your headphones, use this as a line output to connect to other audio equipment.

USB-C Port:

  • Used for both powering the device and transferring data.

Internal Battery Charging Indicator:

  • Shows the charging status of the internal battery.

ON/OFF Switch:

  • Turns the device on or off.

Mix Knob:

  • Adjusts the volume balance between the sample and the beat.



Headache Sound reserves the right of final decision.

Internal Memory - Files & Settings

Folders

  • beats: Beat audio (WAV or MP3, use 48kHz 16-bit WAV for best results).

  • recordings: Internal recordings (48kHz 16-bit stereo WAV).

  • samples: Scratch samples (WAV or MP3, use 48kHz 16-bit WAV for best results).

settings.txt

  • Fader: What to cut on each side.

  • Fader Cut Point: Sharper/delayed cut.

  • 33.3 RPM Value: Middle pitch speed.

  • Pitch Knob Range: Max pitch adjustment (%).

  • Jog Wheel Response: Audio quality/response balance.

  • Sample High Pass Filter: Low Frequency cutoff (Hz).

  • Sample Effect: Effects to enable.

  • Delay Time: Delay time (seconds).

  • Delay Strength: Delay intensity.

  • Reverb Room Size: Reverb environment.

  • Reverb Strength: Reverb intensity.

  • Reverb Damping: High-frequency damping.

Wow Machine Jog Wheel material

The circular disc of the Jog Wheel can be easier replaced. The default material is 1mm acrylic sheet that is laser cut, printed and engraved. It highly simulates the feel and weight of a vinyl record, however, other materials like aluminium or carbon fibre sheet can be used here. There will be custom colors, custom printed discs for those who want a completely unique machine.

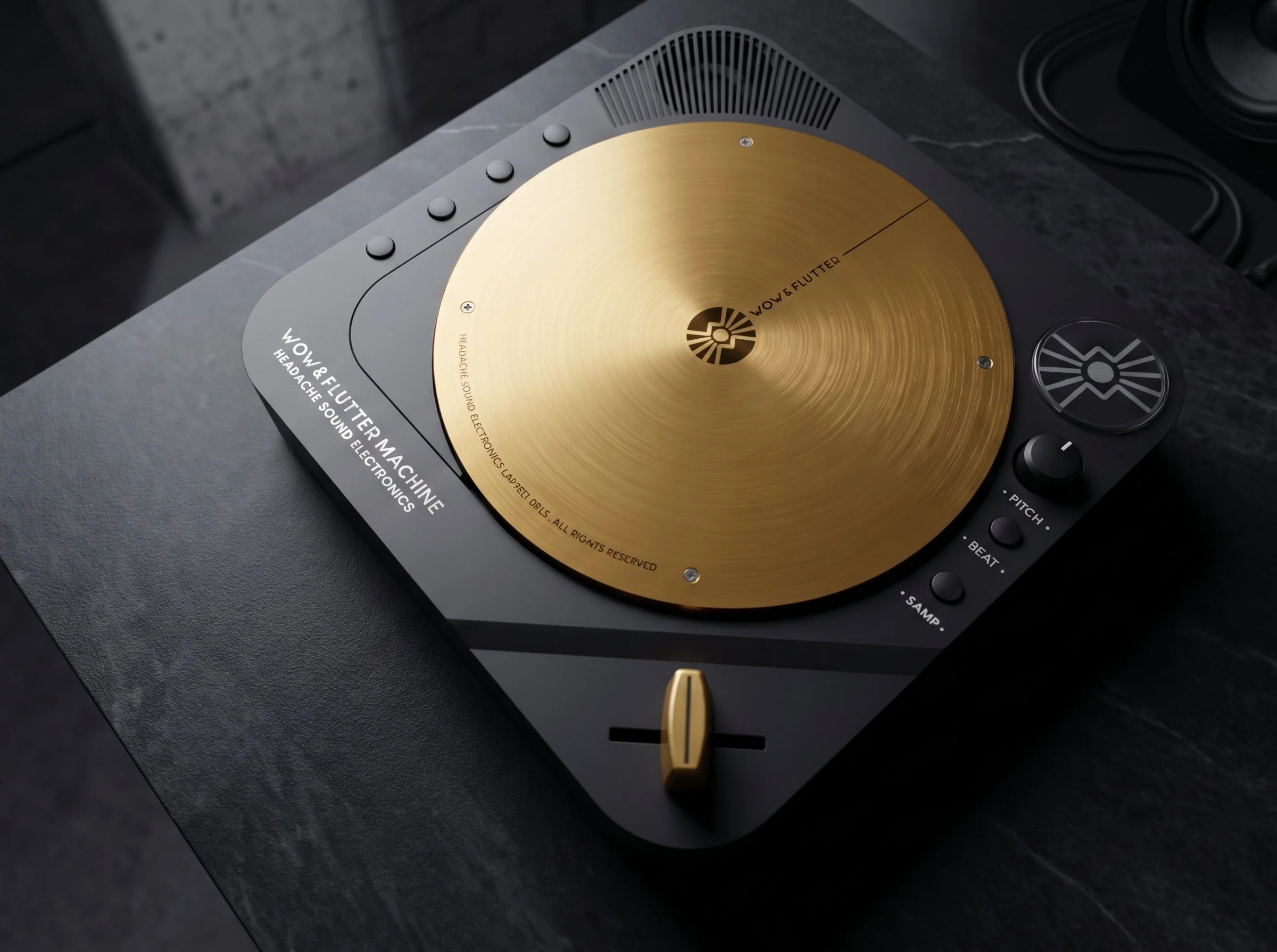

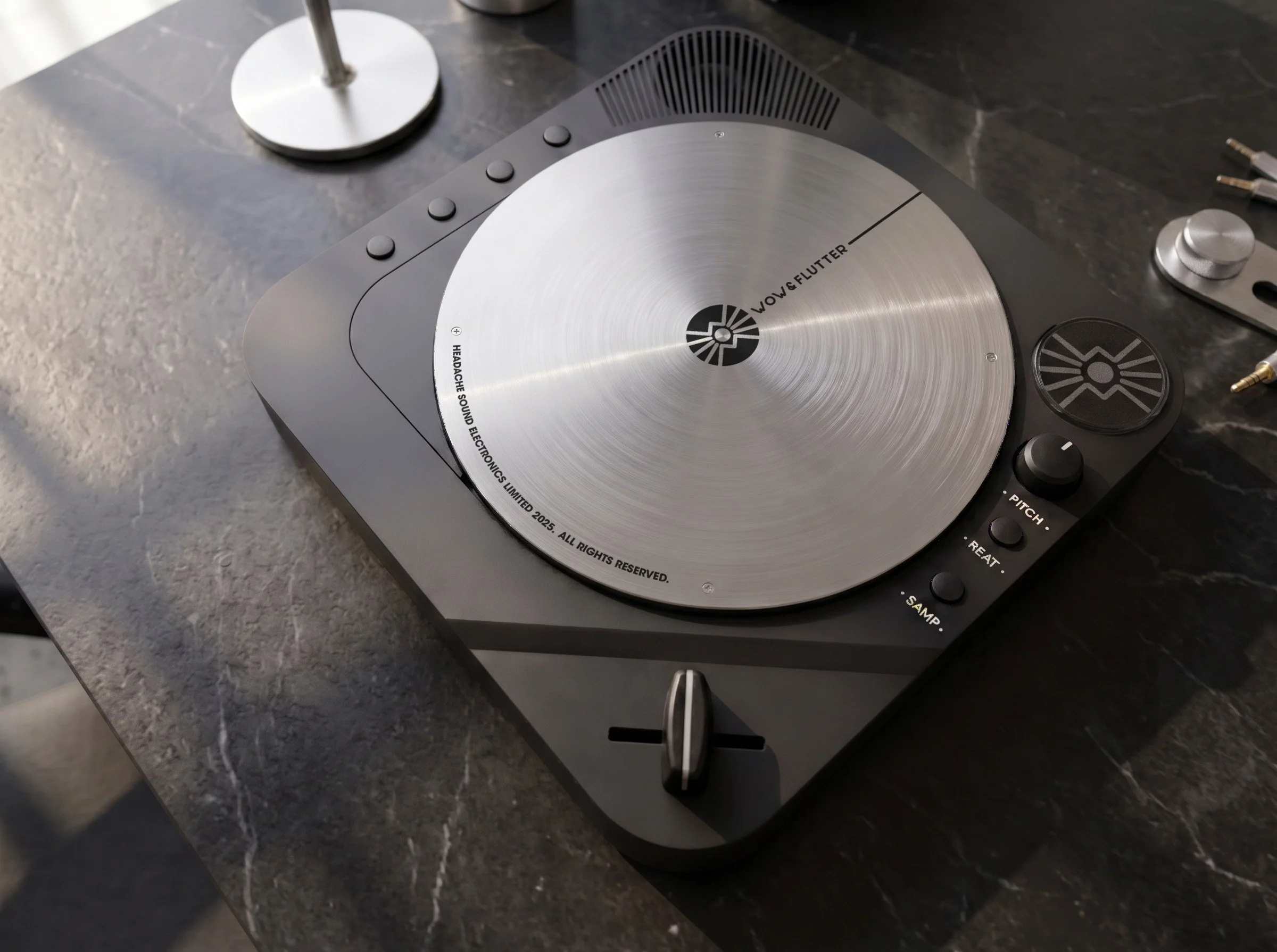

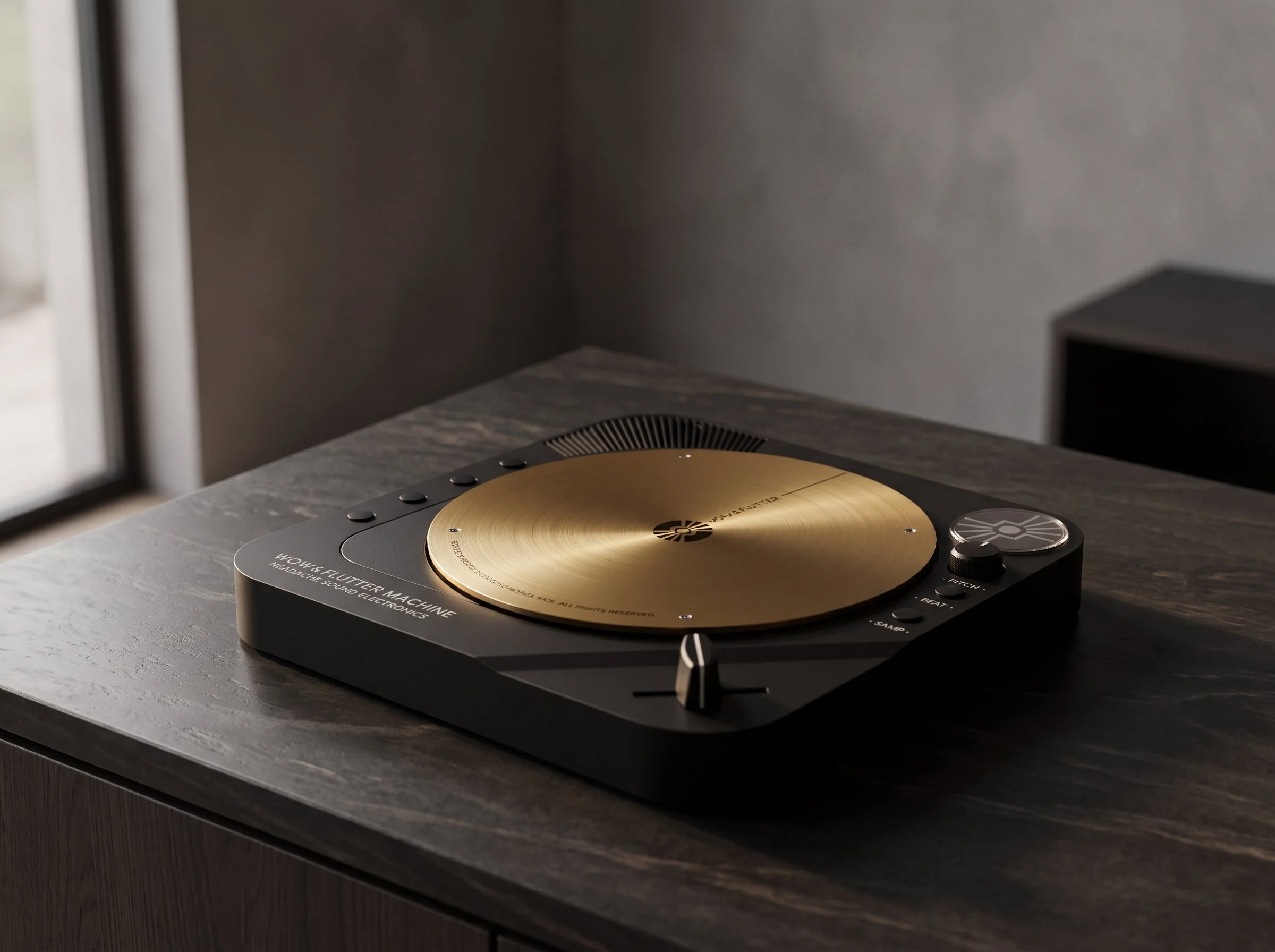

The current optional upgrades are mirror-like polished aluminium discs, which is definitely a cosmetic and feel enhancement. We provide silver and golden mirror finishes.

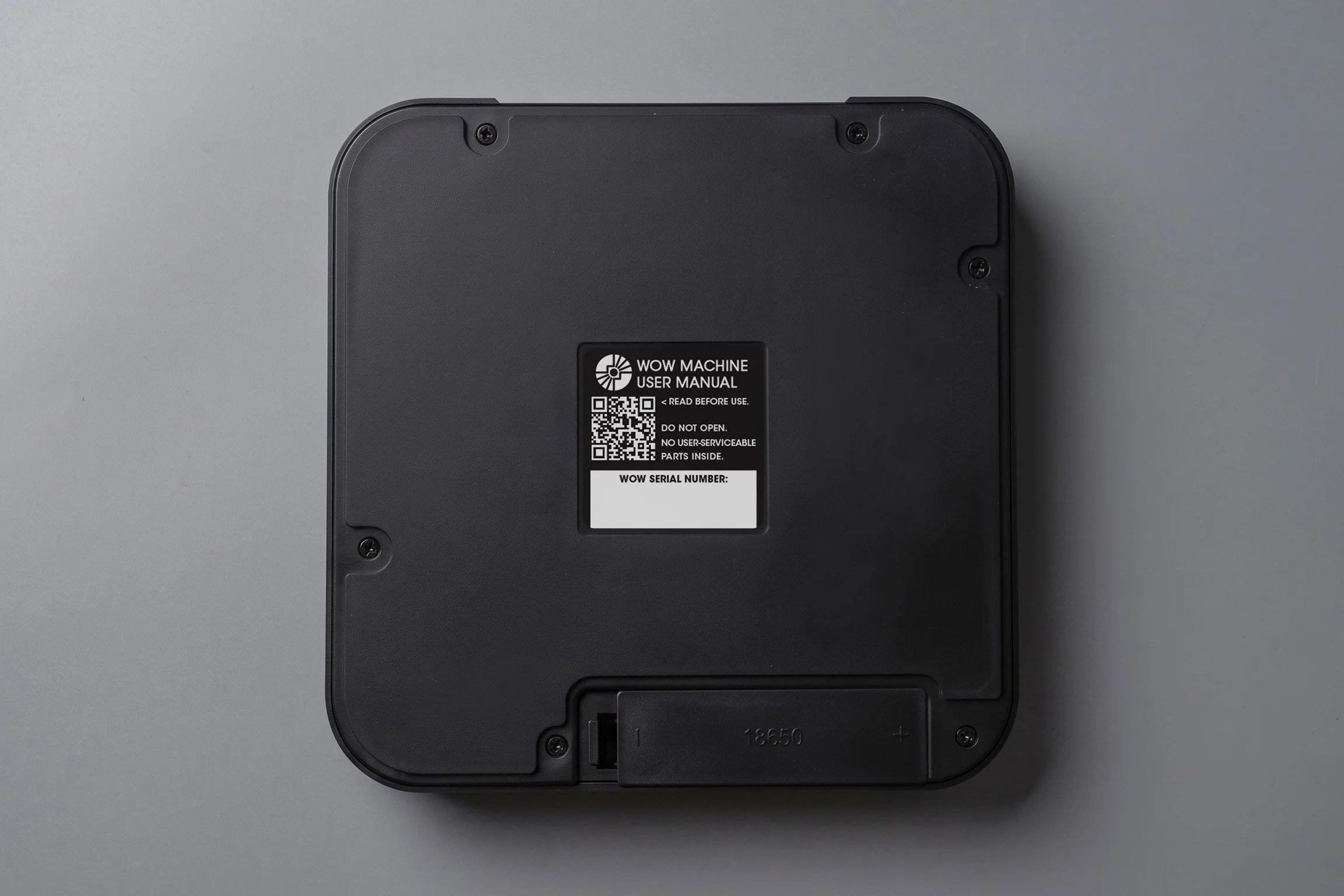

Recharging Batteries

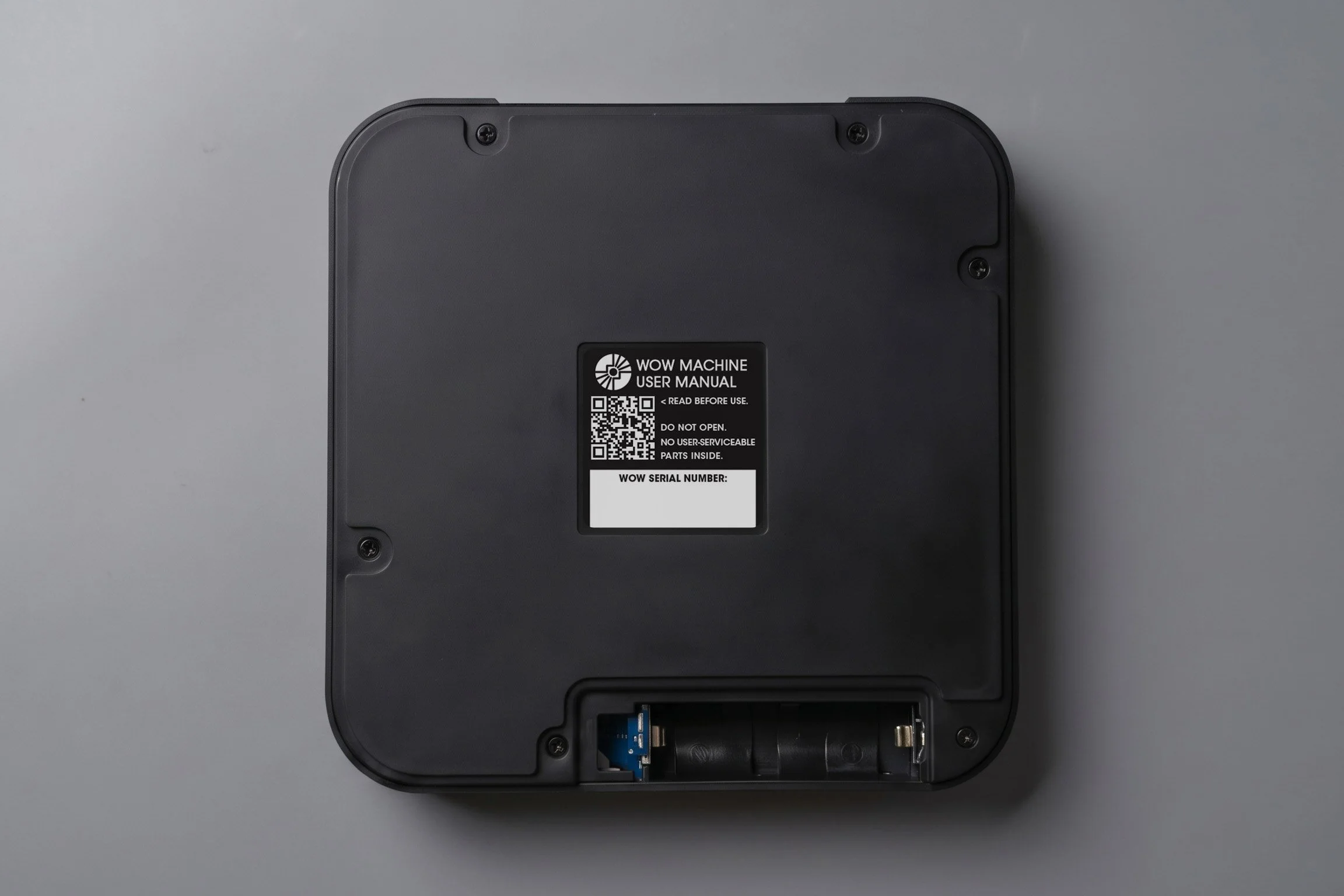

Wow Machine takes one 18650 battery, lasts for 4-6 hours. Play time depends on battery capacity and internal speaker volume.

Battery is internally charged by plugging in USB power. It can charge and play simultaneously.

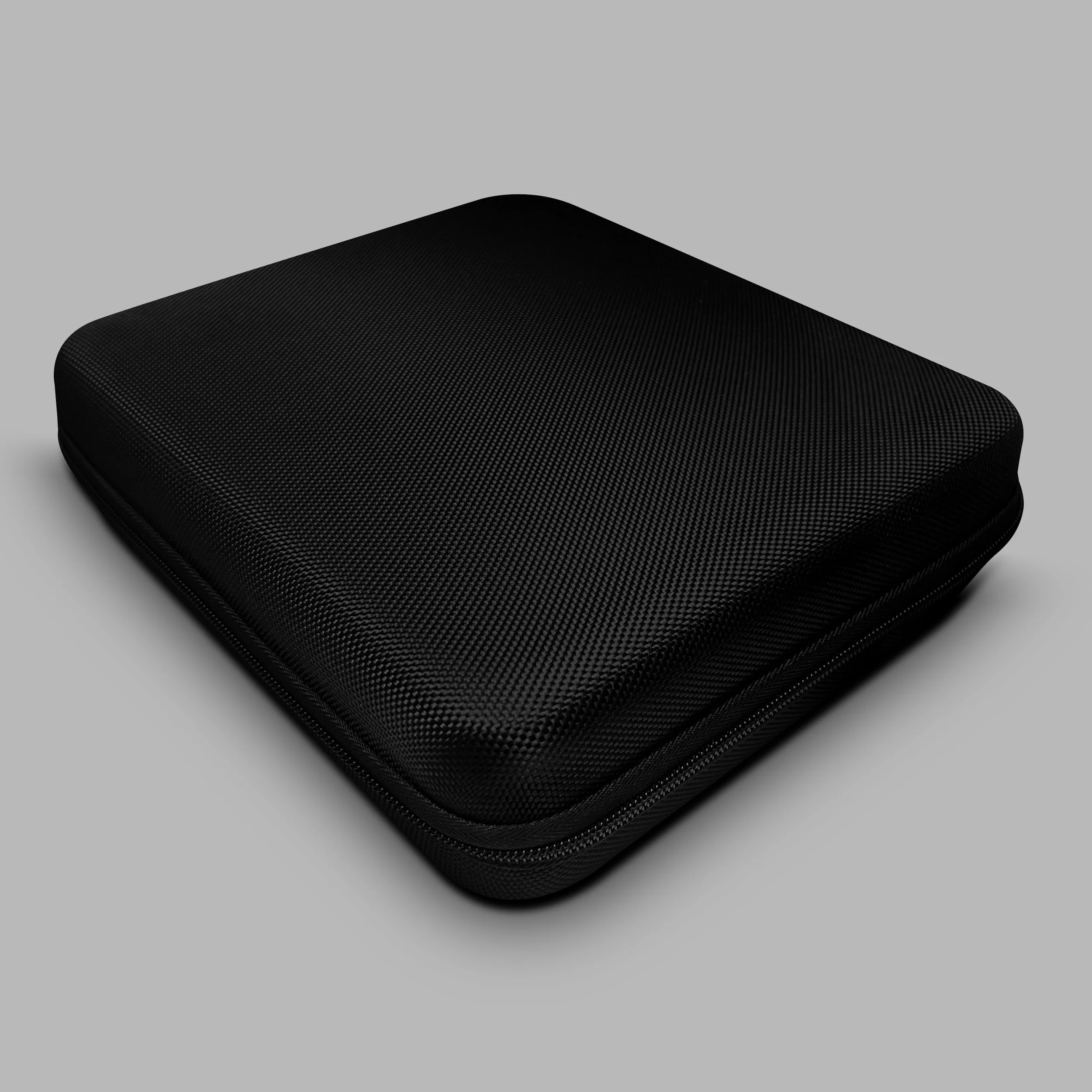

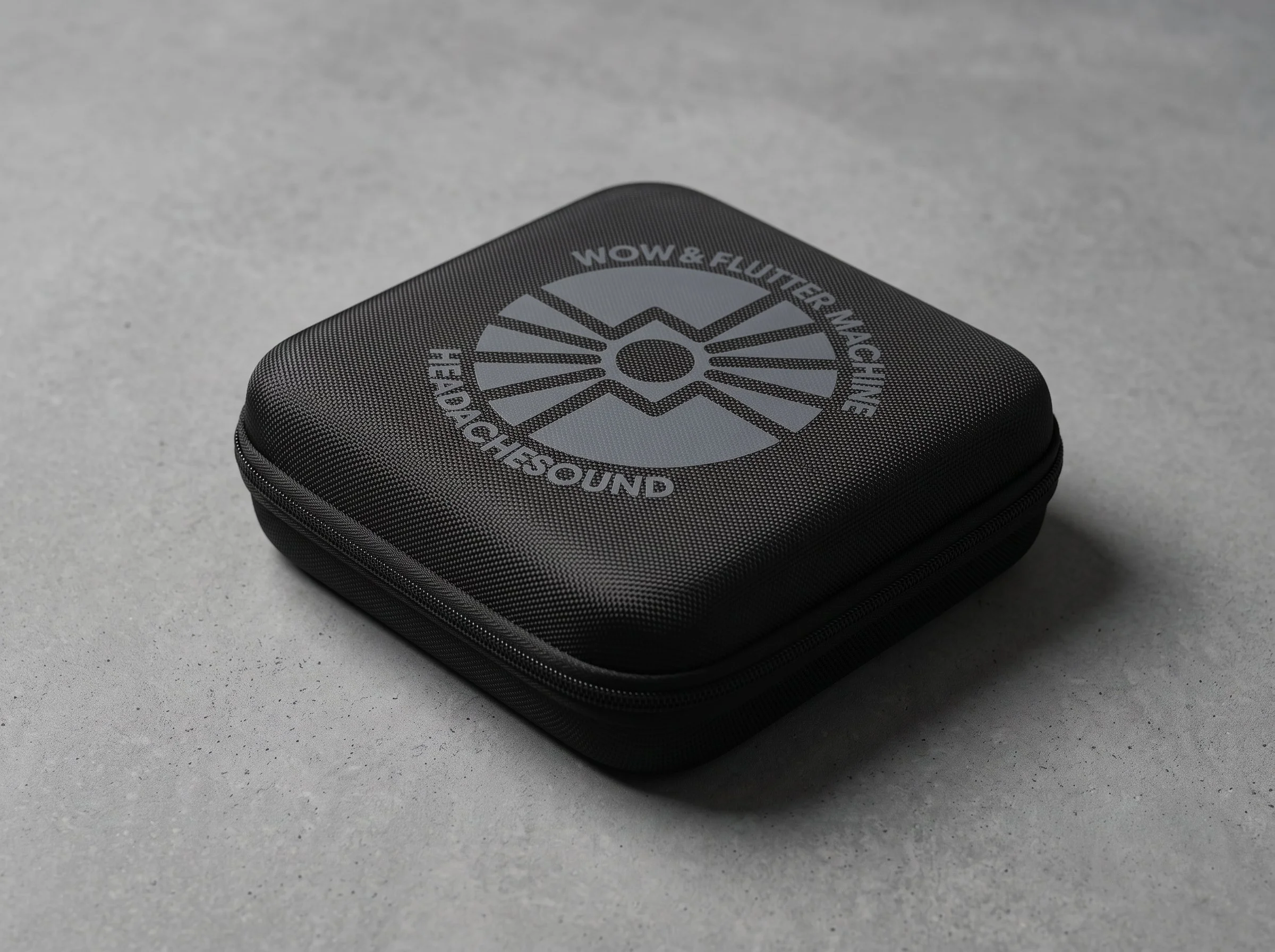

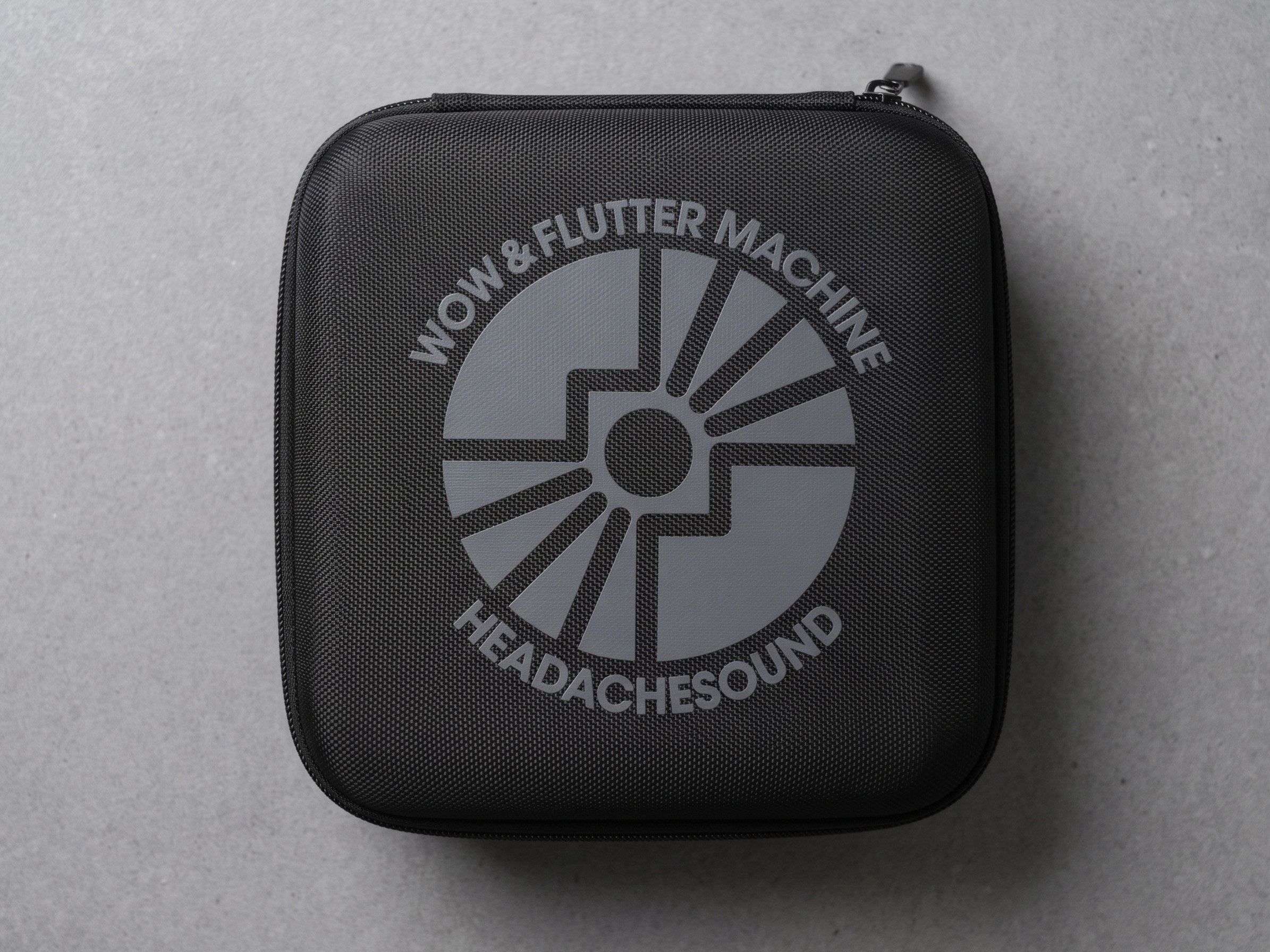

Soft carrying case

Softcase provides excellent protection while carrying WOW Machine around.

soft case size : 22x22x6cm
